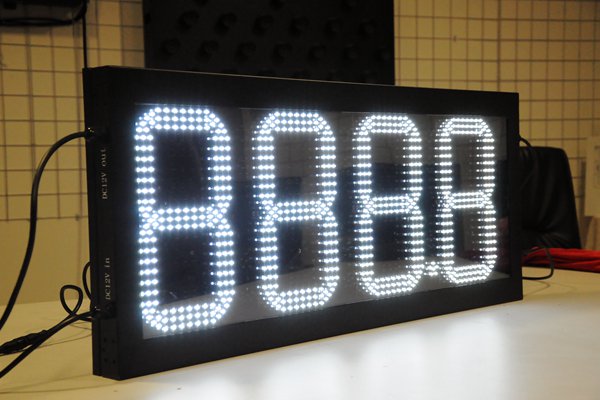

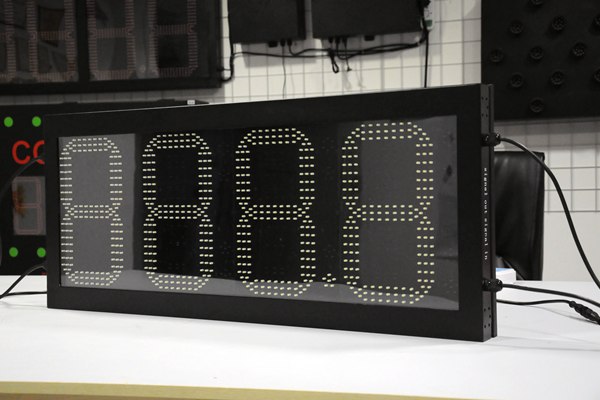

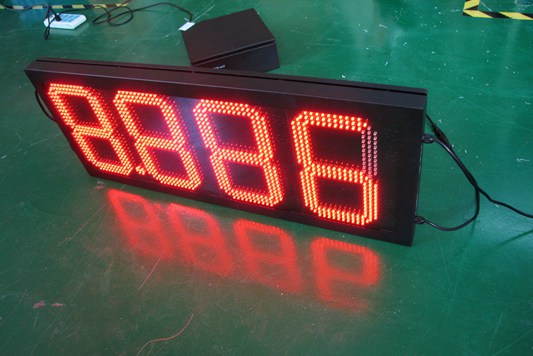

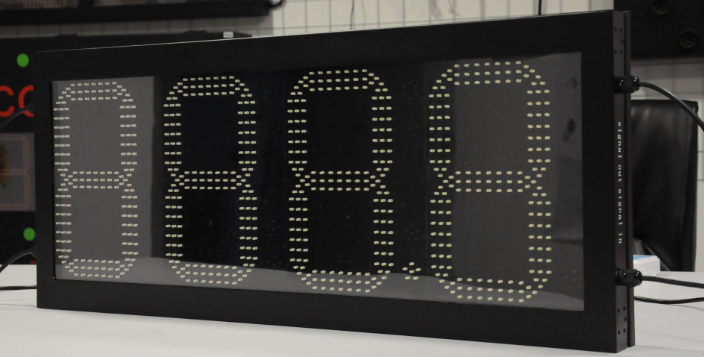

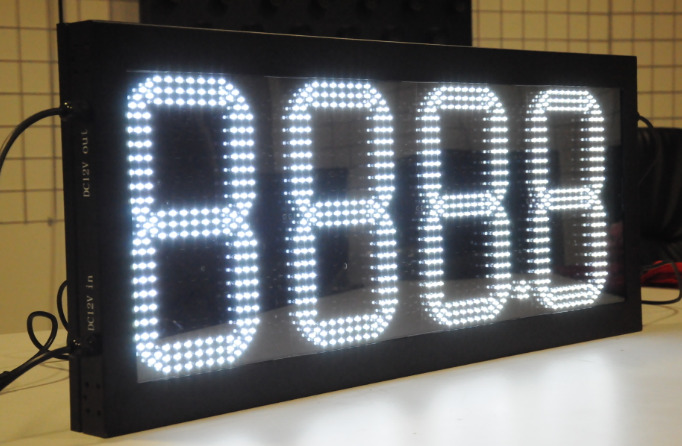

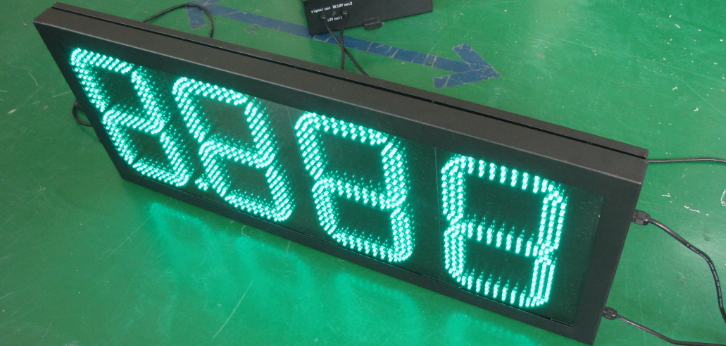

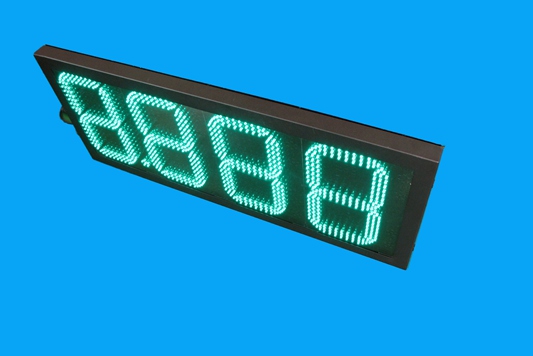

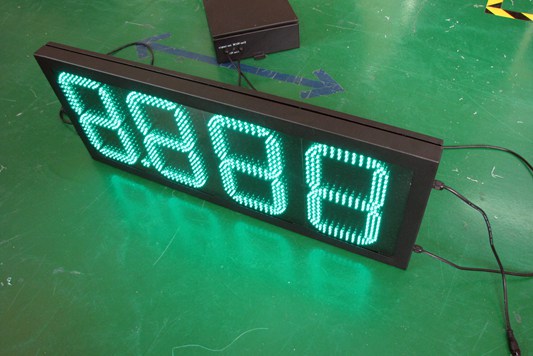

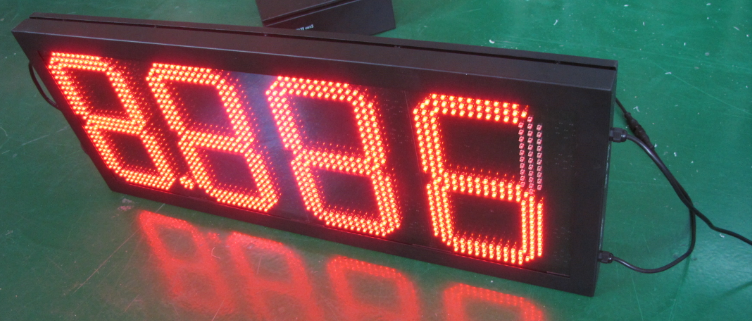

Led gas price sign
Technical Features
● Waterproof and high-brightness for outdoor
● Display format: 8.88, 8.888, 8.889, 8.88 9/10 etc.
● Special slim gas price design for your special structure request.
● Different sizes and colors are available that fit your flexible needs and wants.
● A finished cabinet makes installation trouble-free with no additional fabrication needed.
● Customized face designs.
● Status LEDs placed on the driver for easier troubleshooting.
● Gives customers the flexibility of advertising many fuel prices.
● High intensity LEDs allow for us to manufacture a more efficient display.
● Up to 255 pieces can be networked, and two kinds of remote control methods with twelve-button operation.
● Power supply with CE/UL approval available.
Series Parameters |
Item | Technical Parameters |
Color | Red, amber, green, blue or white |
Digit Height | 4", 6", 8", 10", 12", 16",18",20", 24", 32", 36", 48", 60" etc. |
Digit Design | 4"~24" : standard digit; 32" and above are multi-stroke seven segment digits. |
Brightness Control | Auto-dimming by sensor. |
Display Dimming | Over 8 levels of automatic intensity adjustment. |
Viewing Angle | Horizontal: 120°, Vertical: 100° or customized |
Service Access | Front or rear access |
Master/slave | Single/Double side, master/slaves available |
Casing Material | Steel, aluminum available. |
Waterproof Level | IP65 front & IP54 rear for outdoor |
Led Driving Mode | Constant current |
Power Input | 110/220VAC , 60Hz/50Hz |

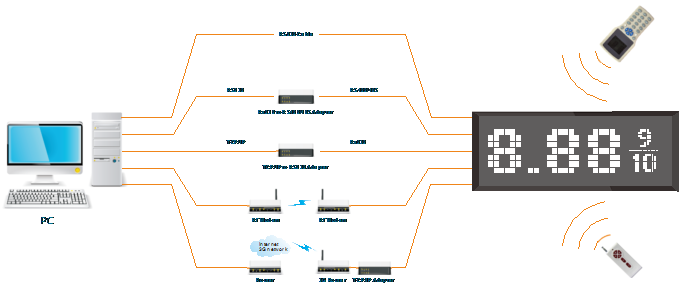

Pc Communication | Rs232/ RS422(standard); LAN(TCP/IP),GSM modem, RF modem, SMS(optional) |
Communication Distance | Max.15meters for RS232, 1200meters for RS422 |
Remote Control Type | RF wireless remote control with communication range of 300ft / 100m. |
Continuous Working Time | Unlimited |
Lifetime of Leds | >100,000 Hours |
Installation Method | Hanging, mounting or per custom design |
Working Temperature | Indoor:-20°C to +60°C; Humidity: 15% -95%RH |
Display Format | 8.88 8.888 8.889 8.88 9/10 etc. |
Digital size
Digital size | Format | Wide | Height | Depth |
4 inch | 8888 | 324mm | 175mm | 100mm |
6 inch | 8888 | 506mm | 228mm | 55mm |
8 inch | 8.889 | 590mm | 293mm | 60mm |
8888 | 632mm | 293mm | 60mm |
8888 | 637mm | 283mm | 130mm |
88888 | 774mm | 293mm | 60mm |
10 inch | 888 | 604mm | 347mm | 60mm |
| 704mm | 347mm | 60mm |
8888 | 647mm | 347mm | 60mm |
8888 | 784mm | 347mm | 60mm |
88888 | 964mm | 347mm | 60mm |
12 inch | 888 | 724mm | 400mm | 60mm |
| 836mm | 400mm | 60mm |
8888 | 788mm | 400mm | 60mm |
8888 | 944mm | 400mm | 60mm |
88888 | 1164mm | 400mm | 60mm |
16 inch |
| 1077mm | 507mm | 60mm |
888.8 | 1224mm | 507mm | 60mm |
88.888 | 1514mm | 507mm | 60mm |
18 inch | 8.88 | 1054mm | 560mm | 60mm |
8.889 | 1219mm | 560mm | 60mm |
88.88 | 1383mm | 560mm | 60mm |
20 inch |
| 1294mm | 610mm | 60mm |
88.88 | 1464mm | 610mm | 60mm |
8.888 | 1464mm | 610mm | 60mm |
24 inch | 8.88 | 1344mm | 710mm | 60mm |
88.88 | 1771mm | 710mm | 60mm |
8.888 | 1564mm | 710mm | 60mm |
32 inch | 8.888 | 2077mm | 916mm | 60mm |
36 inch | 8.888 | 2290mm | 1000mm | 130mm |
48 inch | 8.888 | 3350mm | 1310mm | 120mm |
60 inch | 88.8 | 3078mm | 1624mm | 130mm |
