Technical Features

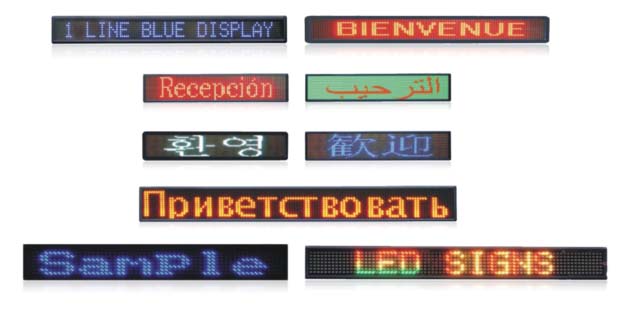

● Display English or European characters, graphic symbol and simple animations.
● 7 Fonts, each with regular, bold and wide mode; 66 other European characters.
● 25 methods of displaying your message (Cyclic, Scroll up, Scroll down, Open to Center, Open from Right, Open from left….)
● Approximately 7000 characters of memory space to store messages.
● Built-in timer to power on/off during the day.
● Built-in real time clock with 12-hour or 24-hour display format.
● 8 pre-defined graph for easy to recal.
● 8 user-defined graph
● 30 pre-graphic symbols such as phone, car, clock, rocket, etc.
● 8 pre-defined phrases and animations such as MERRY CHRISTMAS
● Sequencing multiple messages display.
● Time-Alarm setting.
● 8 programmable display speeds.
● 8 pause periods from 2-60 seconds.
● 3 different buzz sound can be added anywhere within the message.
● Interface of the managing software can be in multiple languages.
● Up to 255 units can network via RS422 communication.
● Password protection
Series Parameters
Item | Technical Parameters |
Pixel pitch | 7.62mm (standard), 10mm, 15.24mm, 22mm |
Color Displayed | Red, Yellow Green, Amber, Blue, Pure Green, full color or White etc. |
Max. Resolution | H7 x W200pixels |
Viewing Angle | 100°/50° (H/V) for indoor models, 100°/50° (H/V) for window brightness |
Connectivity | Rs232 (default), RS422/485, Modem, RF Modem, GSM Modem, 3G or TCP/IP (LAN) |
Remote Control | IR remote |

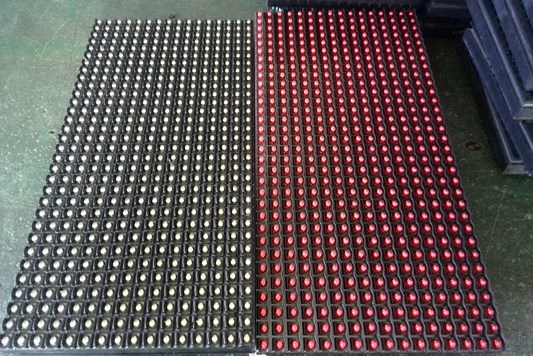

Display Element | φ 5mm(default). |
Memory Retention | Support approx. 7,000 characters over 1 year |
Housing Material | Black powder coated aluminum profile with front cover |
Working Environment | -10°C to +40°C |
Power Input | AC 110 or 220 V ±10%, 50 ~ 60 Hz |
Average LED lifetime | 100,000 hours |
Optional Fittings | RS232-RS422/485 Convertor, Modem, RF Modem or TCP/IP(LAN) Adapter |
