P10 full color DIP led display board
Technical Features
● Perfect color mixing efficiency: rational design on reflector and chip arrangement makes RGB color reflector and chip arrangement makes RGB color mixed and condensed sufficiently and creates no granular sensation.
● Good performance in flatness, uniformity, color and white balance consistency, and clarity.
● With wide viewing angle up to H 150°, no image distortion and color cast from any angle within this range.

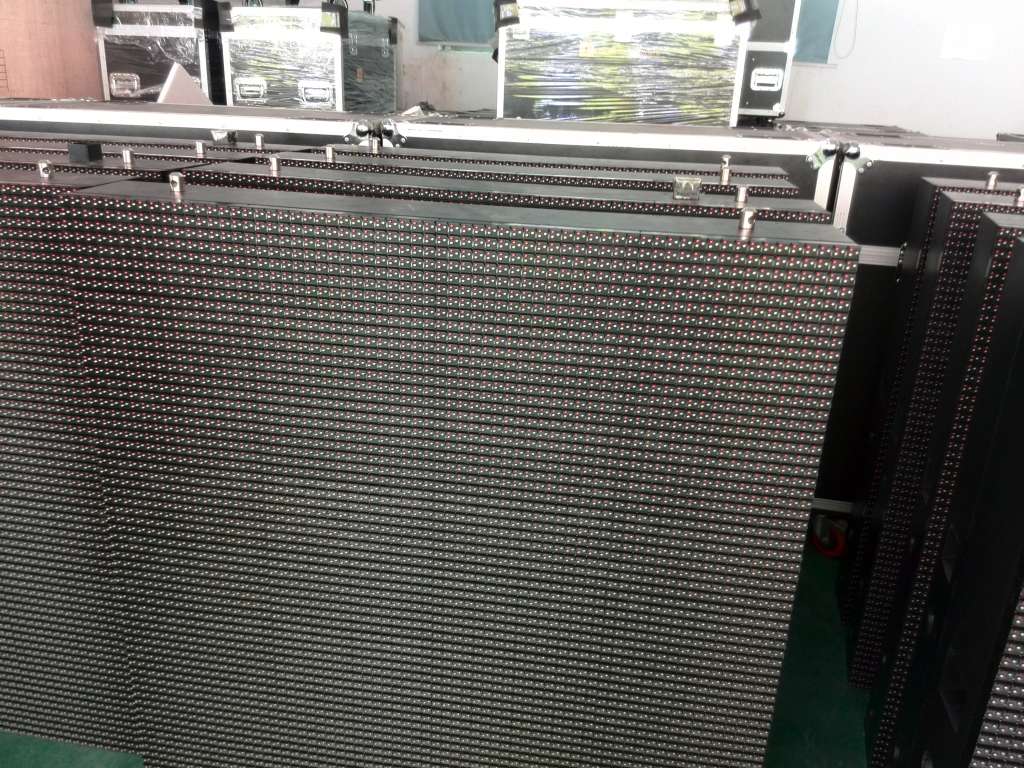

● All of the outdoors cabinets are tested by flush, shower and soaking, to ensure the waterproof grade of front side to be IP65 and back side to be IP43.

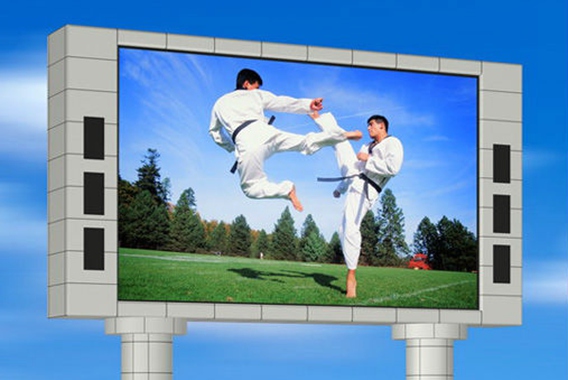

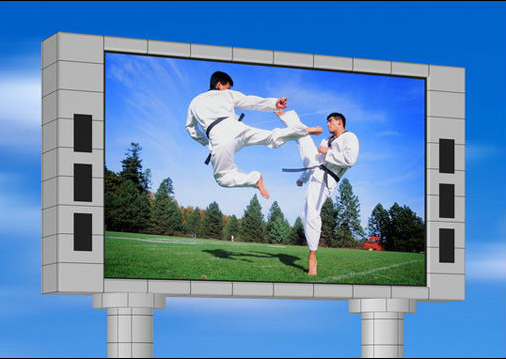

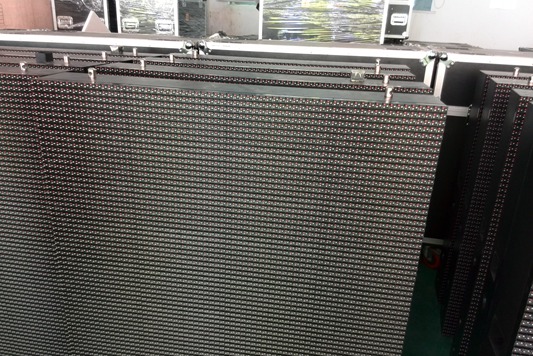

● Specialized structure provide feasibility of various mounting methods such as ground mounting, hanging mounting, embedded mounting and pole mounting etc.

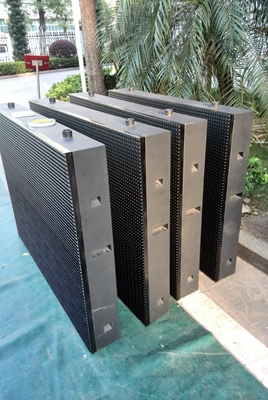

● Double side maintenance structure design, module can be dismantled from front and back side, convenient for maintain.
● With light sense system, led display brightness can be adjusted automatically according to environment, to make led display more energy saving and cost-effective.
Module |
Technical parameters | UNIT | Parameters values |
Pixel pitch | MM | 10 |
Panel size | MM | L160x160 |
Physical density | /M2 | 10000 dots |
Pixel configuration | R/G/B | 1R1G1B |
Driving method | | 1/4 scan |
LED Encapsulation | DIP | 346 |
Display resolution | DOTS | 16X16=256Dots |
Module working voltage | VDC | 5 |
Module consumption | W | 18 |
Cabinet |
Viewing angle | Deg. | H120 V120 |
Option distance | M | 10-120 |
Maximum power consumption | W/ M2 | 700W |
Avg Power consumption | W/ M2 | 160W |
Frame Frequency | HZ/S | ≥60 |
Refresh frequency | HZ/S | ≥320 |
Brightness | CD/ M2 | ≥7000 |
Working temperature | 0C | -10~60 |
Working humidity | RH | 10%～70% |
Display working voltage | VAC | AC46～54HZ，220V±15%/110V±15% |
Colour temperature | | 9500K-11500K |
Gray scale/color | | ≥16.7M color |
Input signal | | RF\ S-Video\ RGB etc |
Control system | | PCTV nonlinearity card+DVI display card+Linsn control system |
Mean free error time | HOURS | ＞5000 |
Life span | HOURS | 100000 |
Lamp failure frequency | | ＜0.0001 |
Antijam | | IEC801 |
Safety | | GB4793 |
Resist the electricity | | 1500V last 1min No breakdown |
Steel box weight | KG/ M2 | 40kg(aluminum)50kg steel box |
IP rating | | IP65 |
Certifications | | UL,CE,ETL,ROHS,CCC |
Steel box size | mm | L960XH960 |
