P5 full color SMD led display board
Technical Features
● High-precision optical design of LED, each pixel is integrated by RGB LED chips.
● Perfect color mixing efficiency: rational design on reflector and chip arrangement makes RGB colors mixed and condensed sufficiently and creates no granular sensation.
● Good performance in flatness, uniformity, consistency and clarity.
● The raw material of all of the outdoor products including LED chips, mask, glue, and steel cabinets have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antirust.
● Every production process is well controlled and all of the electronic components are covered by 2mm Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture. Five-Guard Lacquer will be used for special requirements.
● Large viewing angle, up to 100°horizontally and 100°vertically, with no image distortion and no color cast at any angle within this range.
● All of the cabinets are tested by flush, shower and soaking, to ensure the waterproof grade of front side to be IP65.

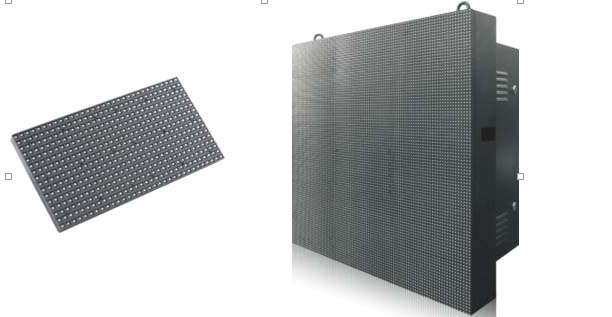

Module |
Technical parameters | UNIT | Parameters values |
Pixel pitch | MM | 5 |
Panel size | MM | L160x160 |
Physical density | /M2 | 40000 dots |
Pixel configuration | R/G/B | 1R1G1B |
Driving method | | 1/8 scan |
LED Encapsulation | SMD | 2727 |
Display resolution | DOTS | 32X32=1024Dots |
Module working voltage | VDC | 5 |
Module consumption | W | 30 |

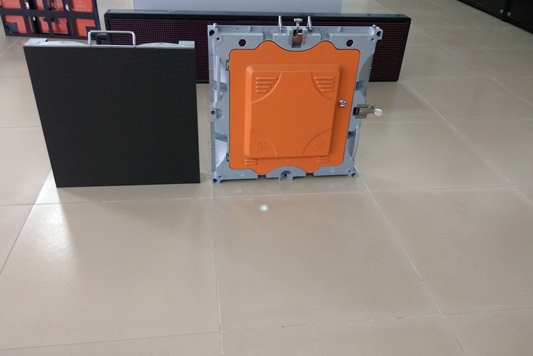

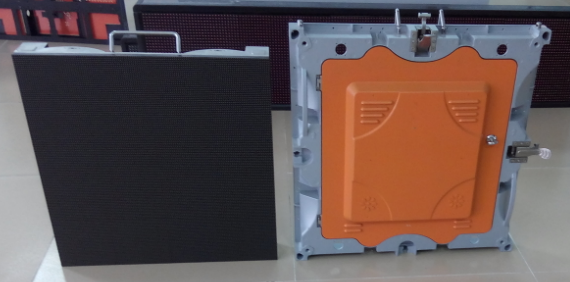

Cabinet |
Viewing angle | Deg. | H120 V120 |
Option distance | M | 10-120 |
Maximum power consumption | W/ M2 | 800W |
Avg Power consumption | W/ M2 | 180W |
Frame Frequency | HZ/S | ≥60 |
Refresh frequency | HZ/S | ≥320 |
Brightness | CD/ M2 | ≥7000 |
Working temperature | 0C | -20~50 |
Working humidity | RH | 20%～90% |
Display working voltage | VAC | AC46～54HZ，220V±15%/110V±15% |
Colour temperature | | 9500K-11500K |
Gray scale/color | | ≥16.7M color |
Input signal | | RF\ S-Video\ RGB etc |
Control system | | Synchronous/Asynchronous |
Mean free error time | HOURS | ＞5000 |
Life span | HOURS | 100000 |
Lamp failure frequency | | ＜0.0001 |
Antijam | | IEC801 |
Safety | | GB4793 |
Resist the electricity | | 1500V last 1min No breakdown |
Die-casting aluminum cabinet | KG/ M2 | 40kg(aluminum) |
IP rating | | IP65 |
Service method | | Front or rear maintenance |
Certifications | | UL,CE,ETL,ROHS,CCC |
Cabinet size | mm | L640x640 |
