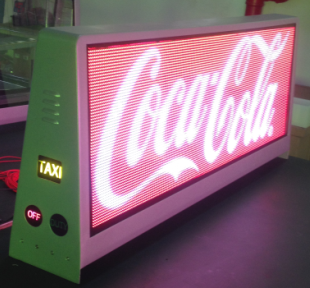

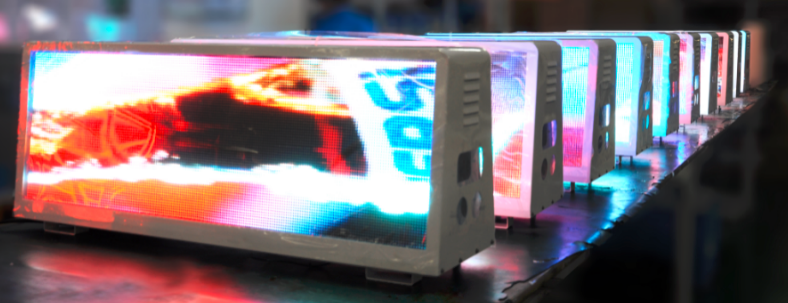

P5 OUTDOOR TAXI TOP
Double Side Full Color Led Display
Product Details

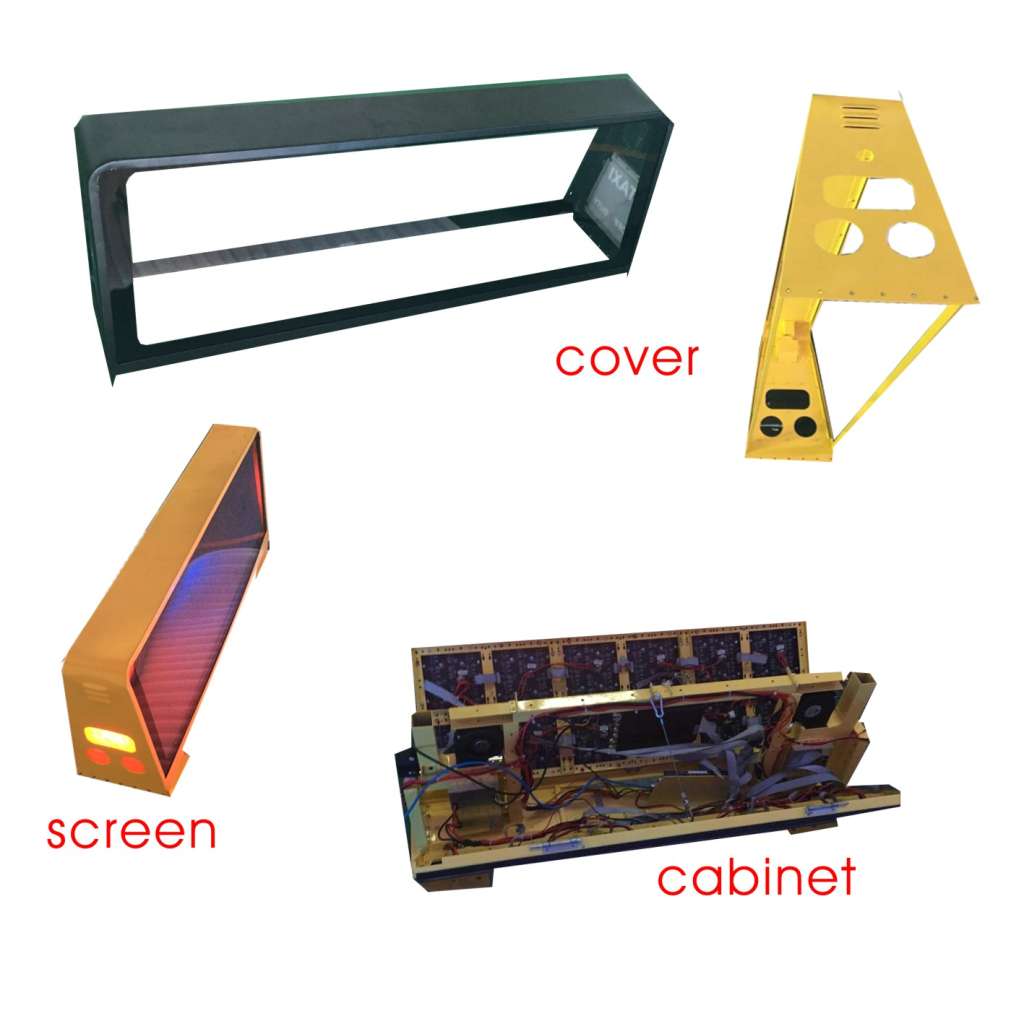

1.Frame structure
2.Display connection

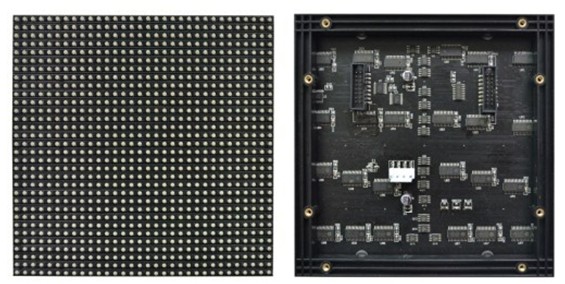

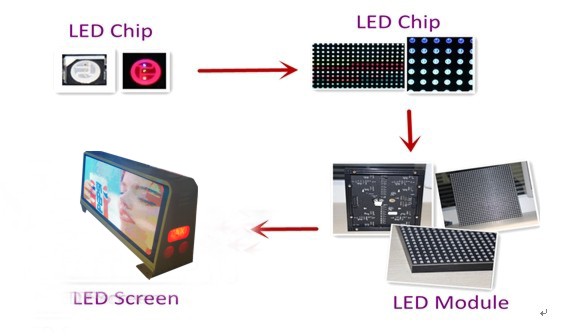

3.Module Photos

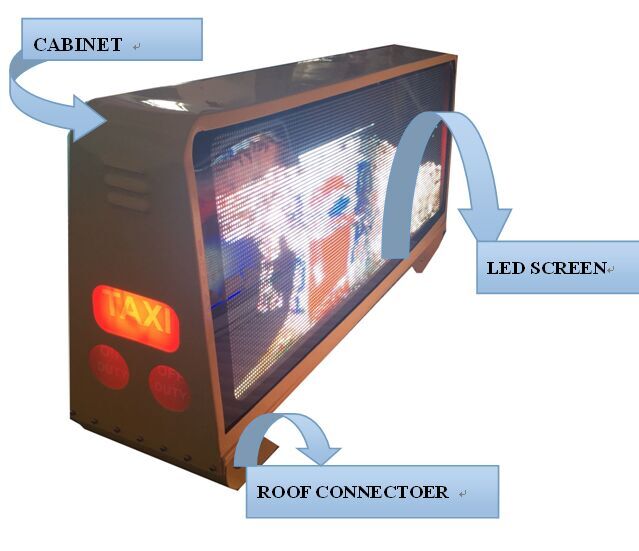

4. Cabinet Structure
5.Connections of circuits

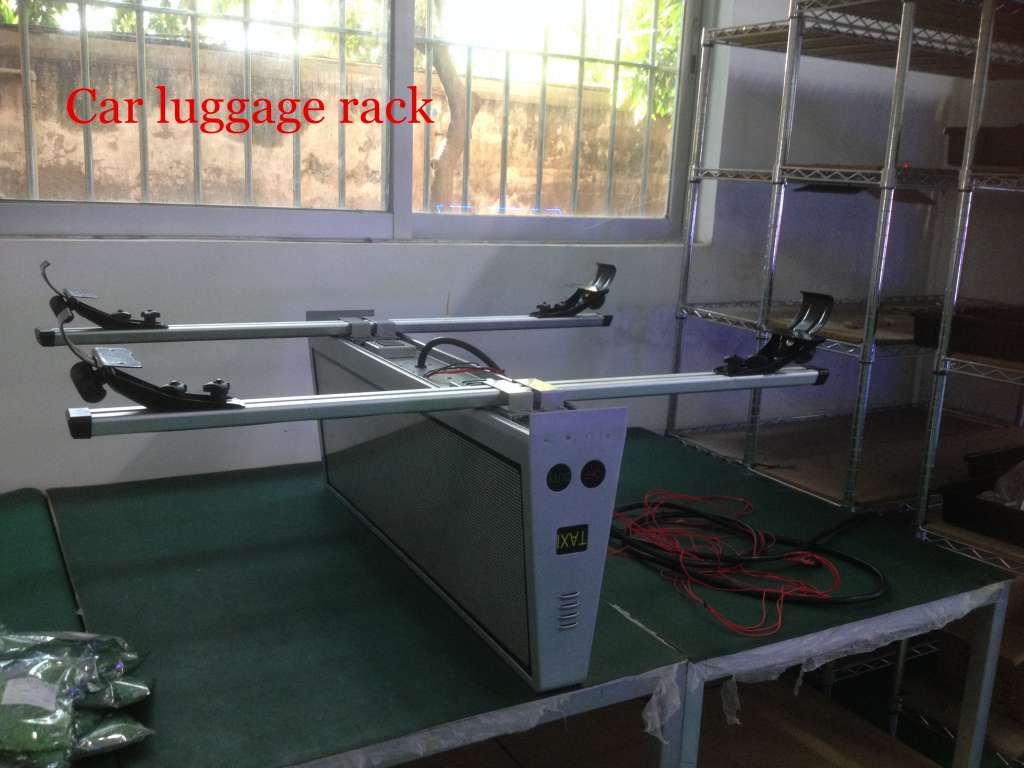

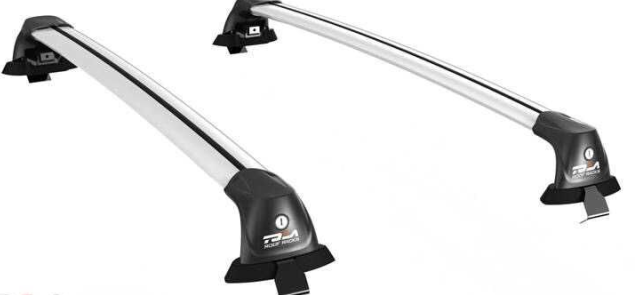

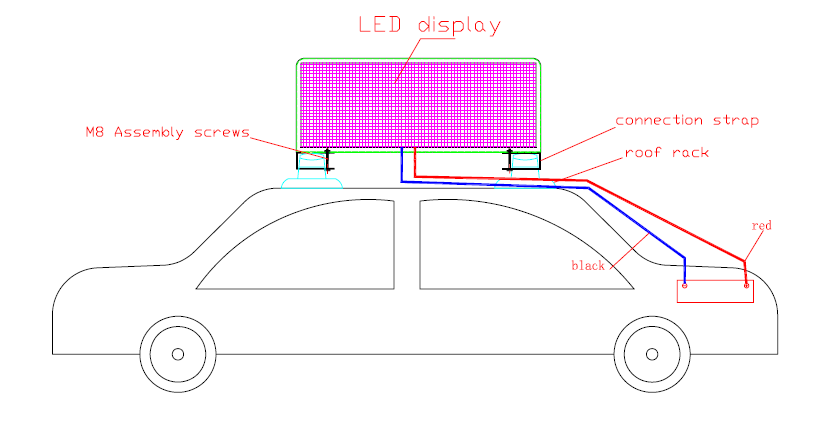

6.Installation Structure
Details
A: Size avaliable for all car
B: with the safety key
C: silver/ black color
Technical Parameters
Item | Description |
Pixel pitch | 5mm |
Certificates | CE,ROHS |
Chip Brand | Epistar |
Wave Length | Red 620-625nm,Green: 525-530nm, Blue:470nm |
Encapsulation Method | SMD3528 or SMD2727 |
Waterproof | IP65 |
Pixel Configuration | P5 SMD 1R1G1B |
Module Resolution | 32 *32 pixels |
Module Size | 160mm*160mm |
Drive IC | MBI 5024 |
Screen Size | 960 mm * 320 mm*2 |
Side | Double Side |
Screen Resolution | 192 *64 Pixels *2 |
Unit Size | 1040* 480* 130 mm |
Material | PC+Aluminum |
Weight | 20 kg/Set |
brightness | >4000 CD/ Sq.m. |
Surface Color | White/Yellow/Black/Silver |
Resolution | 4000 pixels/m2 |
Gray Scale | 65536 level |
Refresh Rate | >360 Hz |
Max Power Consumption | 350 W/pcs |
Video Format: | AVI, WMV, Mpg, MOV, Dat, Vob, MP4, Flv |
Life Span | 100,000 hours |
MTBF | 10,000 hours |
Control Type（optional） | 3G/ WiFi,USB Wireless control |
Protection Level | IP65 |
Effective Control | <100m |
Driving | 1/8 scan |
Least Viewing Distance | 5m |
Power Input | AC 110-240V 50/60 Hz |
Working Temperature | -20°C~80°C |
Software： | Windows XP/Vista/Win7 |
CONTROLLER SYSTEM
CONTROL SYSTEM
Brand :Shanghai XIXUN
Support card: K20, Y10
Function : 3G/4G/WIFI control ads upload
Extra function can be added
A: camera B: DVR C:Gps tracker
