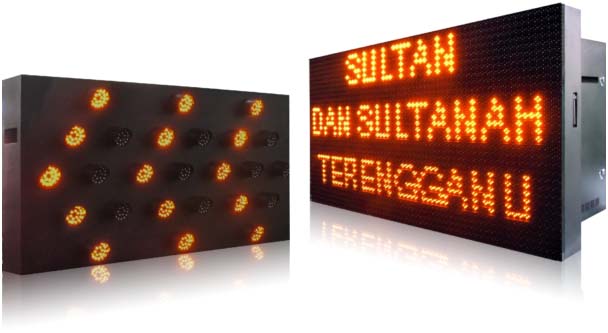

VMS LED Display
Technical Features
● Good performance in flatness, uniformity, color consistency, and clarity.
● With wide viewing angle up to H 110°, no image distortion and color cast from any angle within this range.
● The raw material of all outdoor led display are controlled strictly, including LED chips, mask, glue, and iron cabinet have the ability of enduring high temperature and high humidity, and being anti-UV, waterproof, anticorrosion and antitrust.
● Every production process is well controlled and all of the electronic components are covered by 2mm Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture. Five-Guard Lacquer will be used for special requirements.
● All of the cabinets are tested by flush, shower and soaking, to ensure the waterproof grade of front side to be IP67 and back side to be IP43.
● Double side maintenance structure design, module can be dismantled from front and back side, convenient for maintain.
● With light sense system, led display brightness can be adjusted automatically according to environment, to make led display more energy saving and cost-effective.
Parameters
Item | Technical Parameters |
Pixel Pitch | 31.25mm |
Module Size | 250mm×250mm |
Module Pixel | 8×8 |
Pixels density | Real :1024 dots/sqm |
Pixel form( Optional) | 4 Amber LEDs |
The optimum viewing distance | 44m |
Wavelength Red | F625+/-5nm |
Cabinet dimension | 1000mm×1000mm or Customized |
Cabinet resolution | 32×32 or Customized |
Cabinet weight | 65Kg |
Drive mode | Static constant current |
Max power consumption | 200W/sqm |
Pixel type (Optional) | Real pixel |
refresh frequency | 480HZ |
Horizontal View Angel | >30 degree |
Working Environment | Temp:-20°c~+60°c Humidity: 10%-90% |
Working voltage | AC100~120V/AC 220~240V |
Life time | 100000 hours Mini |
Gray scale | 8 bit amber |
Brightness | ≤7000 cd/sqm |
Blind LED lamp rate | <0.00001 |
Waterproof level | IP65 |
